Tamiya 1/10 High Performance Tyrrell P34 Six Wheeler 1976 Japan GP #84111

【 Highly Realistic Polycarbonate Body with True Scale Presence 】

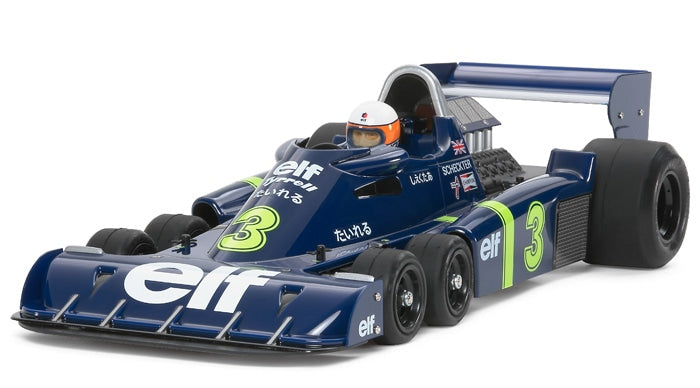

This 1/10 scale electric radio-controlled (R/C) assembly kit faithfully recreates the Tyrrell P34, the world’s only six-wheeled machine to ever compete in Formula One, in its 1976 Japan Grand Prix specification. Making headlines in F1 history, this legendary car is brought to life with a highly detailed polycarbonate body.

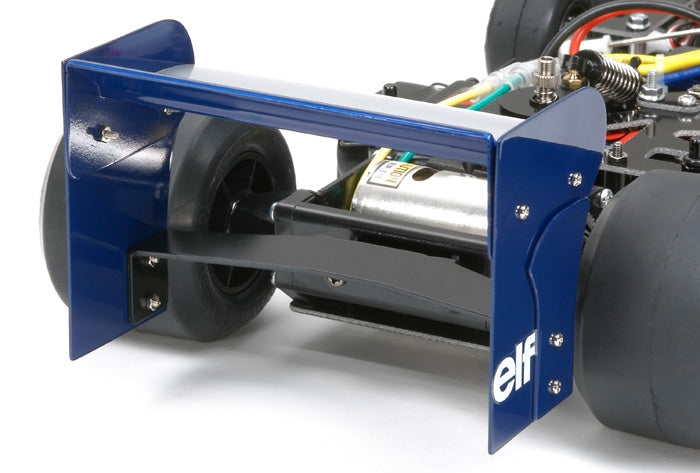

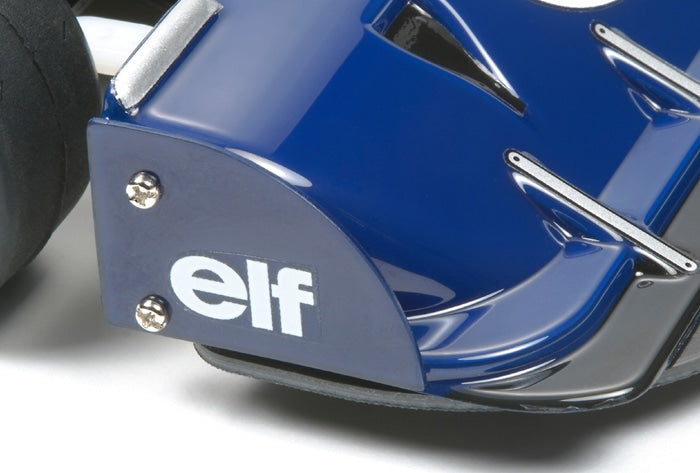

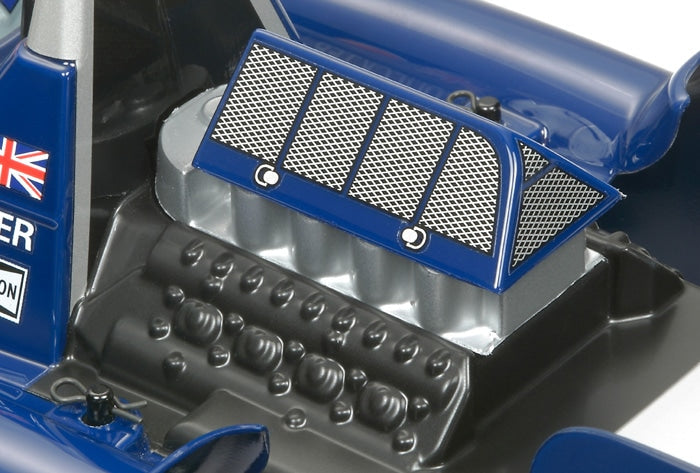

The sports car-style nose, exposed V8 engine, triangular air funnel covers, and the large rear wing with oversized endplates are all precisely molded from polycarbonate for exceptional realism.

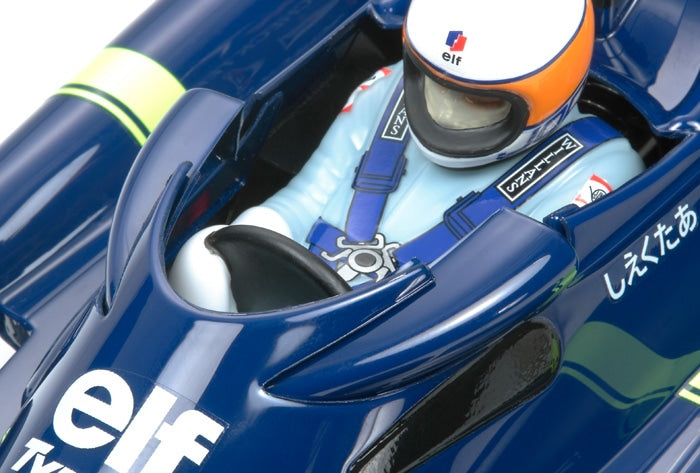

The driver figure is also included as a separate polycarbonate part, making it easier to paint.

Included sticker sets allow you to replicate either Jody Scheckter’s No.3 car or Patrick Depailler’s No.4 car.

Combining a sharp F1-style driving feel with an authentic scale look, this kit captures the excitement of a bygone racing era.

【 F103-Based Chassis Modified for 6-Wheel Drive Feel 】

The chassis is based on the proven F103 direct-drive 2WD platform and has been modified to support the unique six-wheel layout.

It features a lightweight and simple half double-deck frame made of 1.5mm upper and 2.5mm lower FRP (fiber-reinforced plastic) plates.

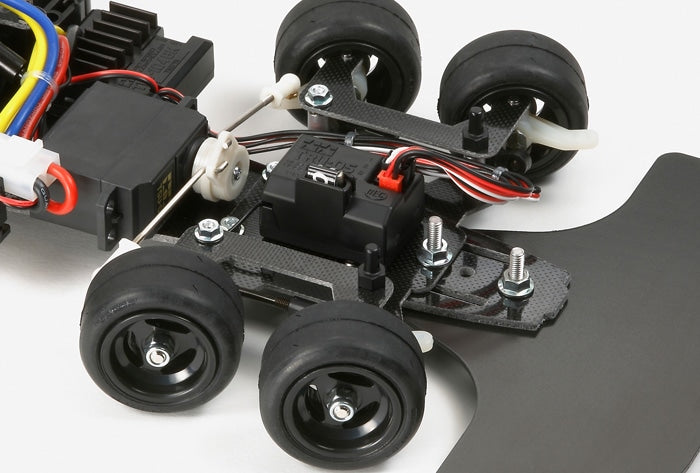

The front suspension consists of an integrated lower arm and separate left/right upper arms with kingpin and coil spring-based independent suspension on all four front wheels.

All four front wheels are steered simultaneously by a single servo.

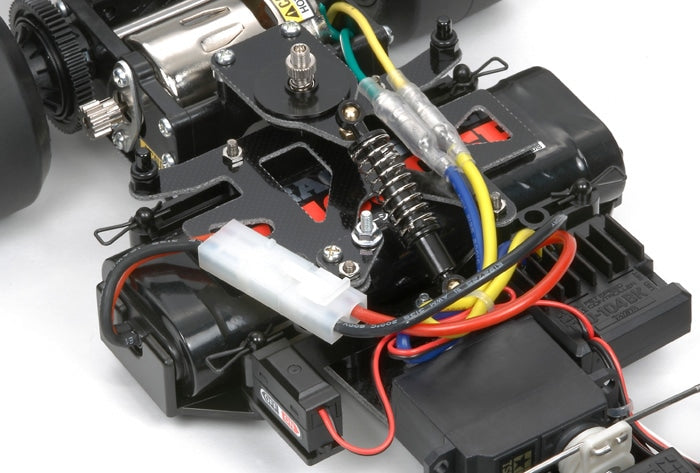

At the rear, the chassis uses a rigid T-bar suspension setup controlled by coil springs and friction plates to manage flex.

The spur gear houses a ball differential, providing a limited-slip effect for smooth and stable cornering.

Both front and rear tires are made from hollow rubber for realism, and the rear tires include inner sponge inserts for added grip and handling performance.

【 Technical Specifications 】

• Length: 430mm
• Width: 204mm
• Height: 108mm
• Weight: 815g (without RC gear and battery)
• Track Width: Front – 134mm / Rear – 155mm
• Tire Size: Front – 23mm wide / 42mm diameter | Rear – 50mm wide / 67mm diameter
• Chassis: FRP half double-deck
• Drive System: Rear 2WD with transversely mounted motor, direct drive
• Differential Gear: Ball diff
• Steering: Equal-length dual tie-rod system
• Suspension:
    Front – Kingpin & coil spring (4-wheel independent)
    Rear – T-bar rigid
• Gear Ratio: 4.5:1 (14T pinion / 63T spur gear)
• Motor: 540-type
• Electronic Speed Controller (ESC): Required but not included
