Tamiya 1/14 R/C GRAND HAULER (MATTE BLACK EDITION)#56356

Looking Great in Black

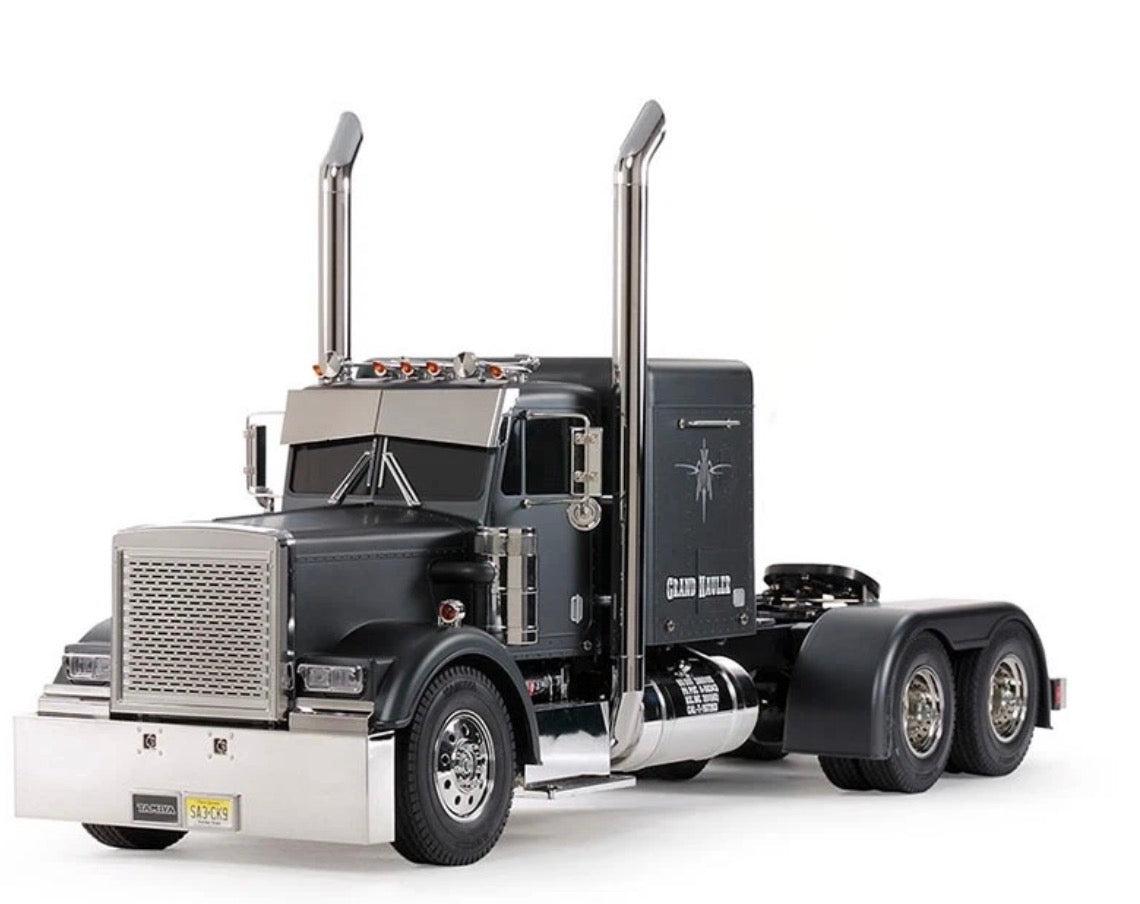

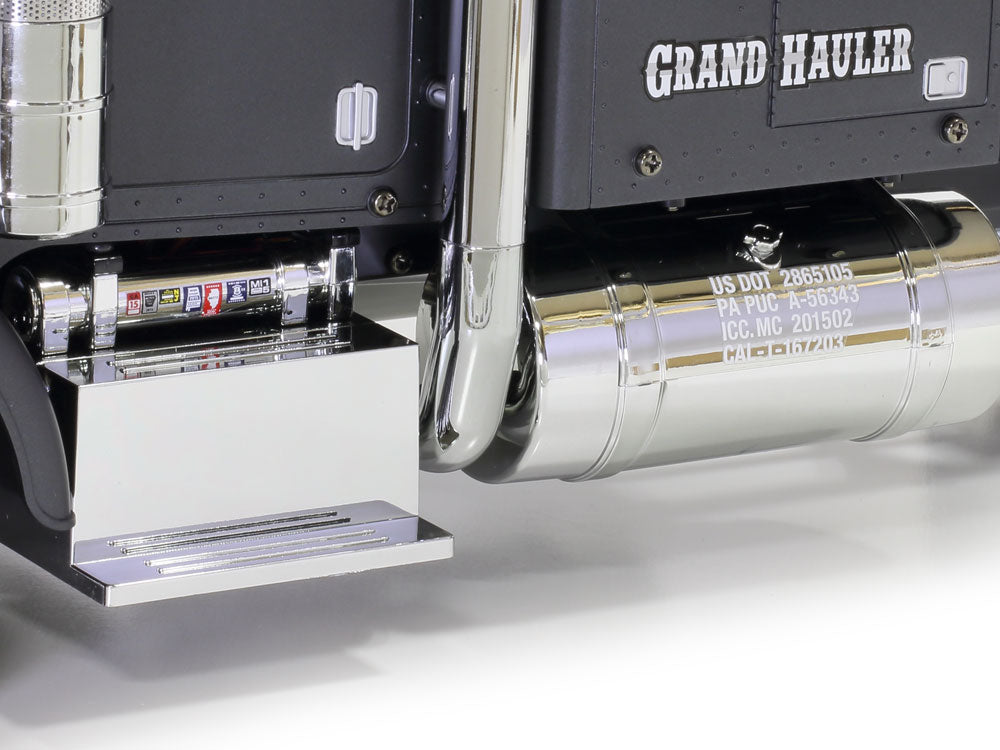

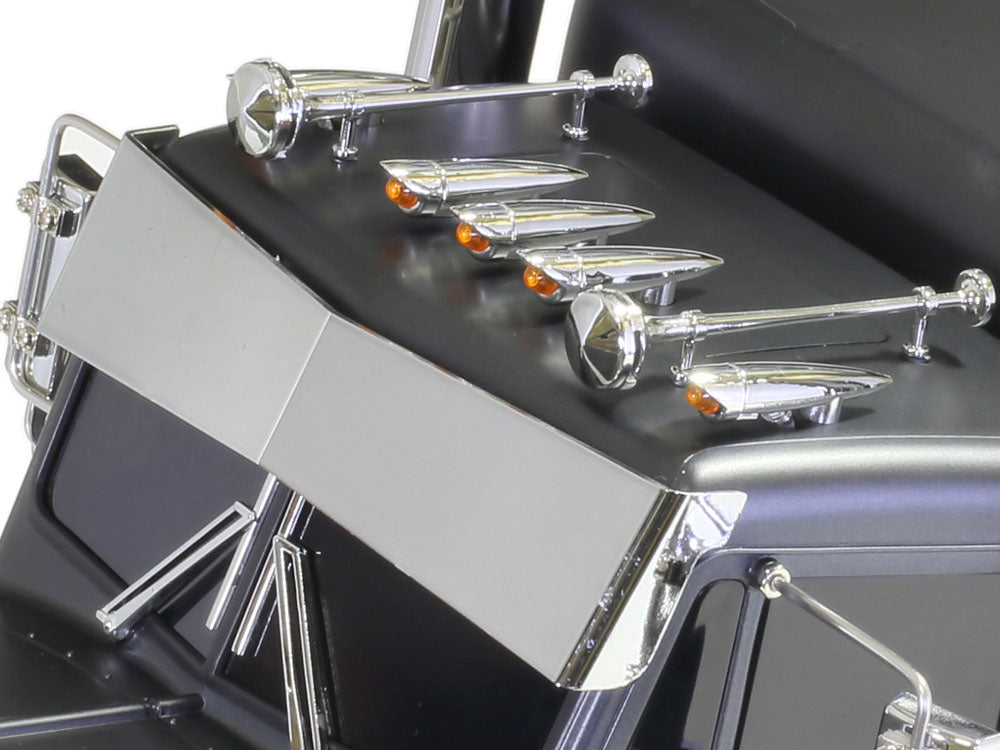

Take control of your very own big rig - this R/C model assembly kit recreates a massive boxy, customized truck like those seen in North America. Body parts are given a sumptuous finish, pre-painted in metallic black and with a matte top coat that contrasts superbly with the numerous metal-plated parts. The model’s ladder frame chassis features aluminum side channels with resin cross members and is equipped with a highly realistic suspension utilizing metal leaf springs and dampers. A front-mounted motor and 3-speed transmission power the two rear wheel axles, which are fitted with built-in differentials to enable smooth cornering. A 4-channel R/C system and multi-function unit allow you to drive the vehicle and experience realistic lights, sounds and vibrations.

Realistic Lights, Sounds, and Vibration

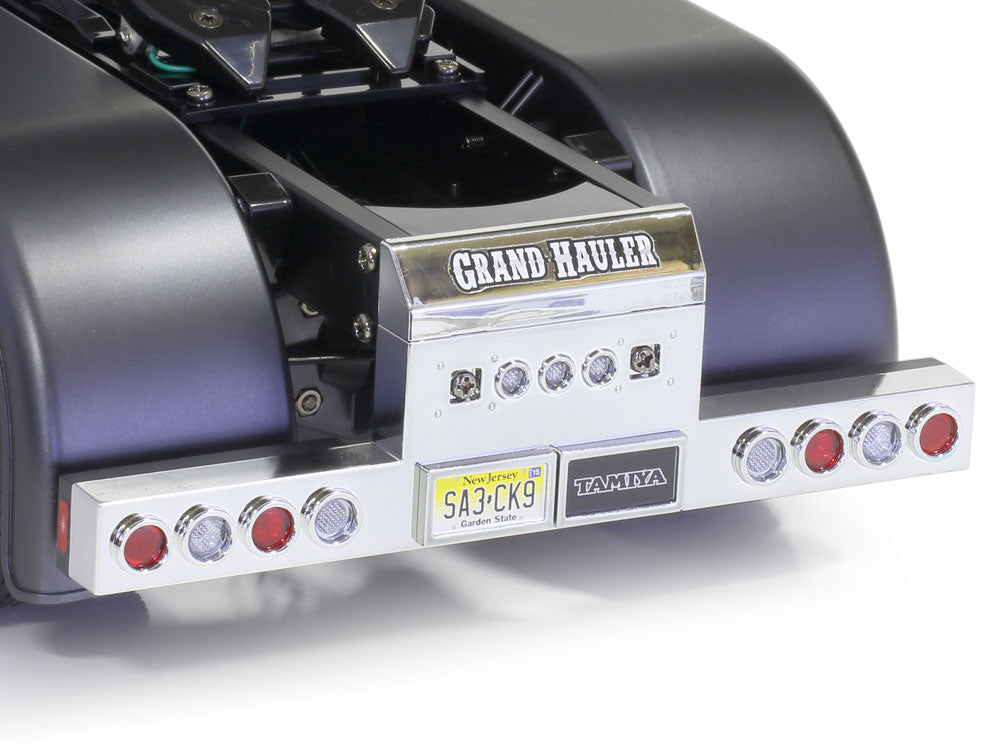

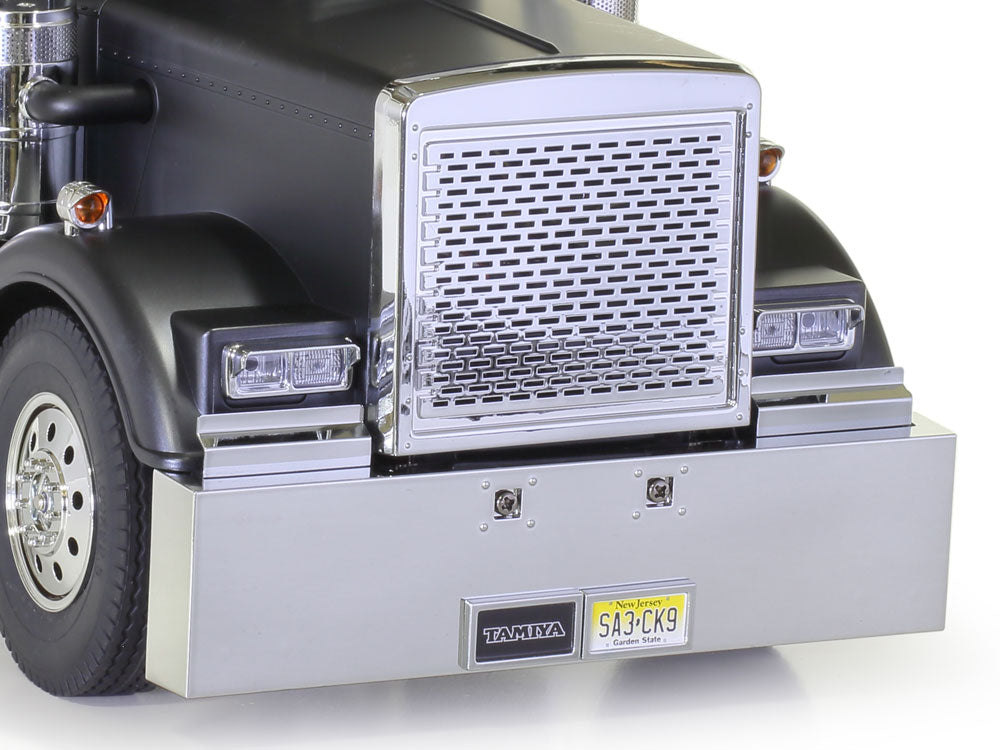

Tamiya Multi-Function Control Units (included for Japanese market only, available separately overseas) offer light, sound, and vibration operation to accompany your R/C truck experience. Engine sounds have been digitally recorded from an actual truck, and together with air horn, gear shifting, and many other realistic sounds, give you the feeling that you are driving the real thing! Headlights, brake lights, fog lamp, hazard lights and turn signal operations are also at your fingertips.

Specifications

Length: 692mm, Width: 192mm, Height: 330mm, Weight: Approx. 3.9kg (*with all equipment attached)

Wheelbase: 433mm+103mm

Tread: 156mm (Front), 138mm (Rear, Double Tire)

Chassis: Aluminum & Polycarbonate Resin Ladder Frame

Suspension: Front/Rear Leaf Springs

Caster Angle: 0° (Front & Rear)

Camber Angle: 0° (Front & Rear)

Toe Angle: 0° (Front & Rear)

Dampers: Front/Rear Aluminum Friction Dampers

Drivetrain: Rear 2-Axle Drive

Transmission: 3-Gear Transmission (gear shifting operated from transmitter)

Gear Ratio: (1st Gear) 32.49:1, (2nd Gear) 17.76:1, (3rd Gear) 10.66:1

Diff Gear: 3-Bevel Diff.

Motor: Type 540

Tire Width: 22mm (Front/Rear)

Tire Diameter: 83mm (Front/Rear)

Requires four R6/AA/UM3 batteries for transmitter (sold separately)

Semi-Trailers Separately Available

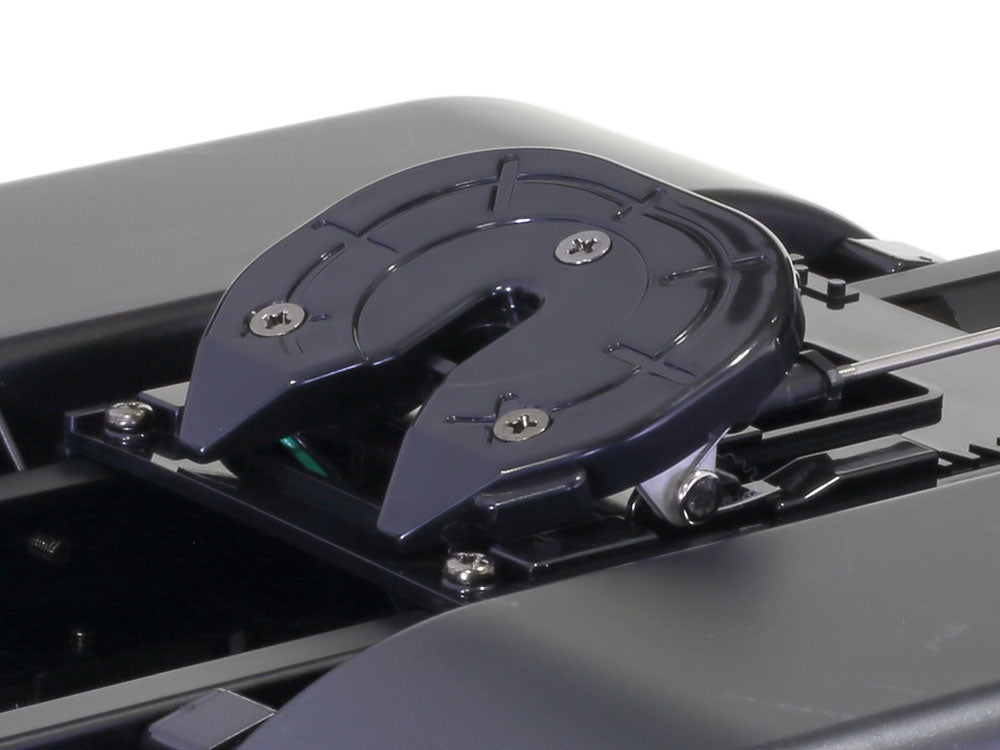

Various types including semi-trailer, tank-trailer, and pole-trailer, are currently available. Attach any one of them via the coupler on the model to create an exciting combination over a meter in length.
